RHub & Notification Framework Post Deployment Activities

This section covers the Post Deployment steps for RHub on PAAS:

• Deployment Engineer

• Installation Engineer

RHub on PAAS - Deployment Engineer Activities

Setup WAF rules

Following patterns of URL has to be added in the Application Gateway WAF policy for the core platform.

• configmanager/rhub

• orchestrator/rhub

• Adapters/rest

• notification-inapp-api/api

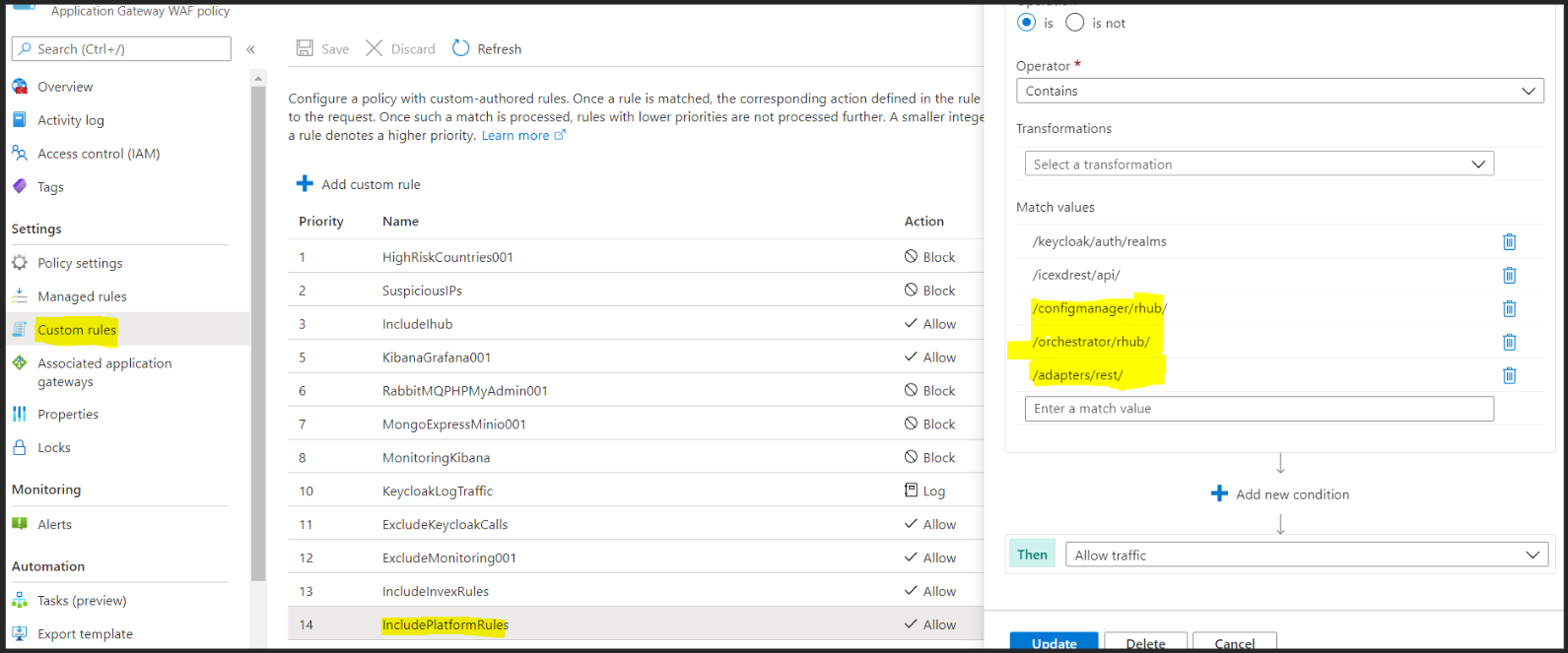

Please fine the following screenshot for reference.

Execute the Sync operation once this is done to make sure the communication in between applications is works fine.

Values for default RHub instance

During the start up of the CHub application, its creating a RHub default instance. The values for creating default instances are:

• RhubOrganizationName – Please provide the organization name

• RhubInstanceID – Instance id can be any apha numeric value (recommended value - 6315729c-4388-11ec-8ba9-27bdfb03b60d)

• RhubToken – Token can be any apha numeric value (recommended value - 6dfe069c-4388-11ec-a5d3-97726de7d584)

• ChubAdminUsername - provide the default user name. It can be any alpha numeric value.

• RhubInstanceName - Provide the name as default-instance

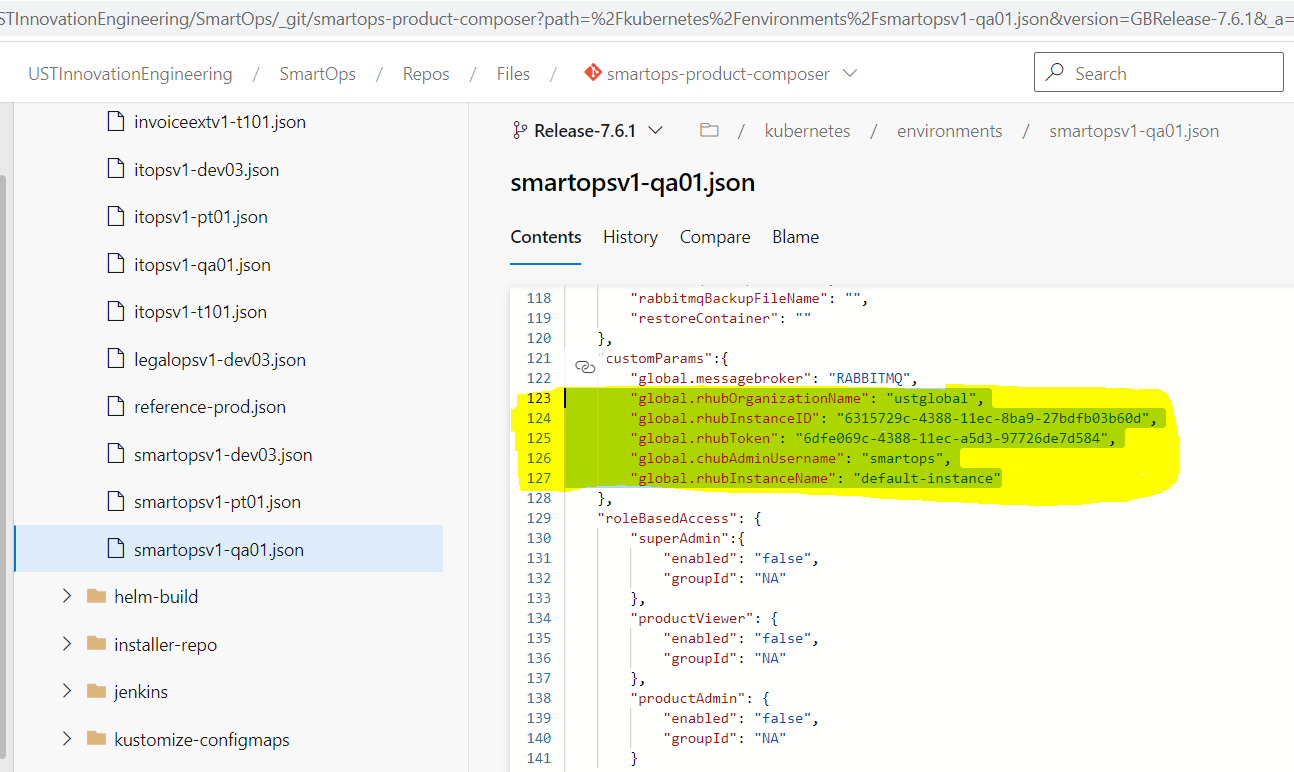

• Please update the values in the environment file

Notification Framework

Steps to be done in the target environment:

• Install AMQP 1.0 plugin in the target environment. The notification framework is using AMQP 1.0 for connecting to rabbitmq. After the plugin installation it requires a restart to reflect the changes in the environment.

Setup Offline Token

• If you have done fresh installation, make sure that you generate offline token for Ustglobal Organization and its available in the secret key vault. The offline token is required to communicate from notification framework to user data store.

RHub on PAAS - Installation Engineer Activities

Notification Framework

1. The notification framework APIs will be available in the platform as part of the deployment. Please note that the Notification framework is not integrated with any of the applications.

2. In order to test the notification framework apis, the Rhub should be synced with a valid inapp flow.

3. Please refer the attached configuration json to create a flow in rhub.configuration json

4. Please do the following modification in the rhub configuration file before adding it to the configuration text area. Details about the rhub configuration file is explained in the Appendix section.

   1. In the adapters section change the URL of all the adapters into the respective environment’s url. For example, the URL for oauth_basic adapter

      • In DEV - http://smartopsv1-dev03-rhub-adapters-oauth-basic-rest:9001

      • In QA - http://smartopsv1-qa01-rhub-adapters-oauth-basic-rest:9001

      • In Stage - http://smartopsv1-<<>>-rhub-adapters-oauth-basic-rest:9001

      • In Prod - http://smartopsv1-<<>>-rhub-adapters-oauth-basic-rest:9001

   2. In the queue adapter section, we are configuring a flow to insert the notification into the InApp database collections.

      • Change the queue_host url to respective environment’s URL. The value of queue_host is used to generate the connection string to establish connection to rabbitmq.

        • In DEV - amqp://admin:j5c6ym6nFm8M2Yia@smartopsv1-dev03-rabbitmq:5672

        • In QA - amqp://admin:j5c6ym6nFm8M2Yia@smartopsv1-qa01-rabbitmq:5672

        • In Stage - amqp://admin:j5c6ym6nFm8M2Yia@smartopsv1-<<>>-rabbitmq:5672

        • In Prod - amqp://admin:j5c6ym6nFm8M2Yia@smartopsv1-<<>>-rabbitmq:5672

      • The flow_url is used to execute a flow to POST a notification to the InApp notification collections. So the flow_url should be defined in the flow section of the configuration and it should be used in the queue adapter. Change the flow_url to respective environments valid url. For example

        • In DEV - https://smartops-dev03.eastus.cloudapp.azure.com/orchestrator/rhub/execute/inappflow

        • In QA - https://smartops-qa01.eastus.cloudapp.azure.com/orchestrator/rhub/execute/inappflow

        • In Stage - https://smartops-<<>>.eastus.cloudapp.azure.com/orchestrator/rhub/execute/inappflow

        • In Prod - https://smartops-<<>>.eastus.cloudapp.azure.com/orchestrator/rhub/execute/inappflow

      • The url parameter is used to configure the api to be called when the flow is executed to insert notification to the InApp notification database. The API URL should be valid url of the InApp Notification’s POST Notification API.

        • In DEV - https://smartops-dev03.eastus.cloudapp.azure.com/notification-inapp-api/api/v1/notifications

        • In QA - https://smartops-qa01.eastus.cloudapp.azure.com/notification-inapp-api/api/v1/notifications

        • In Stage - https://smartops-<<>>.eastus.cloudapp.azure.com/notification-inapp-api/api/v1/notifications

        • In Prod - https://smartops-<<>>.eastus.cloudapp.azure.com/notification-inapp-api/api/v1/notifications

• Do the below setup to send the email notification,

  • Add a queue configuration in the queue adapter. Please refer to the appendix section to get a sample queue configuration for email.

  • The send_mail adapter should be added in the adapters section of the configuration. Please refer the appendix section to get the send_mail adapter.

  • A flow should be added in the config file to send email. Please refer the appendix section to get the sample flow for sending email.

  • If a user want to receive the notification as email, then he/she should be configure the user preference in the user data store. Please refer the “Create User data store (UDS) objects in the environment” to setup the user preference.

• To sync the flow, please follow below steps

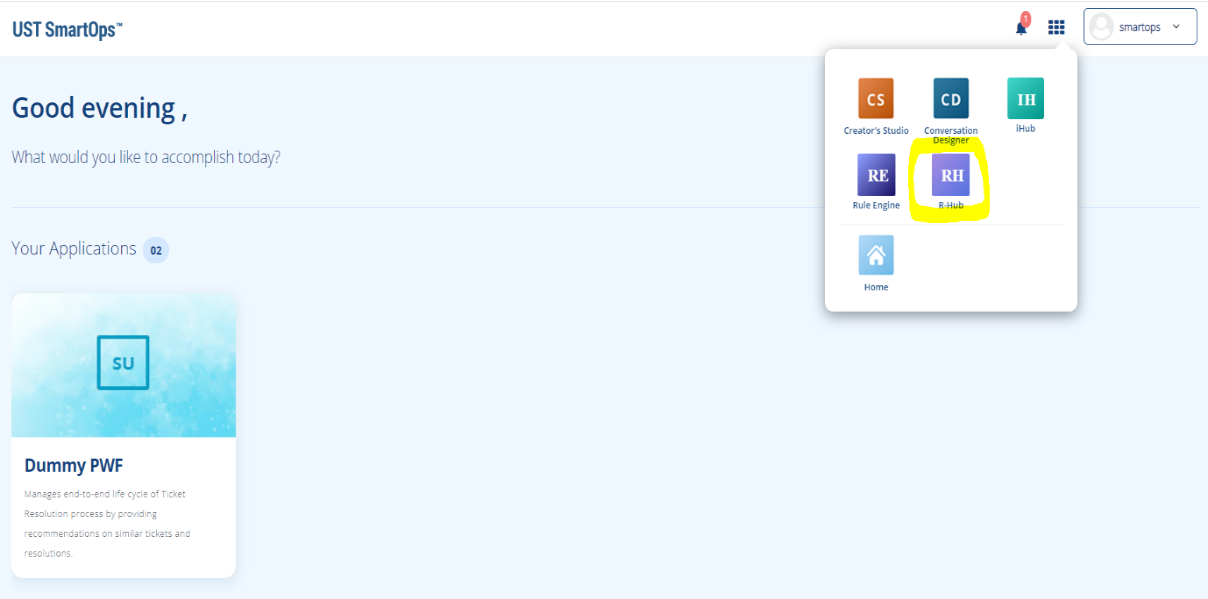

  • Login to platform UI, click on the R-Hub icon in the 9dots.

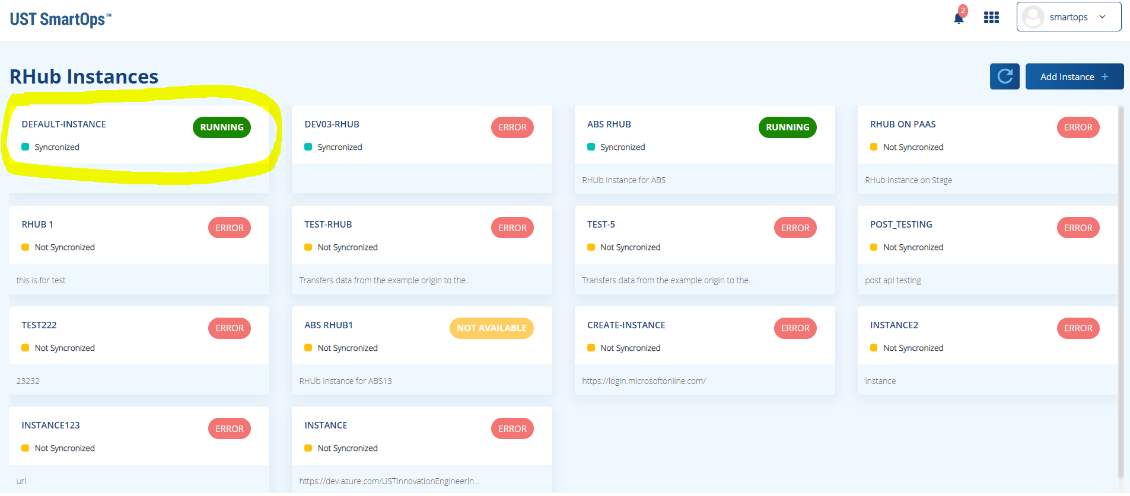

  • Click on the “default-instance” RHub

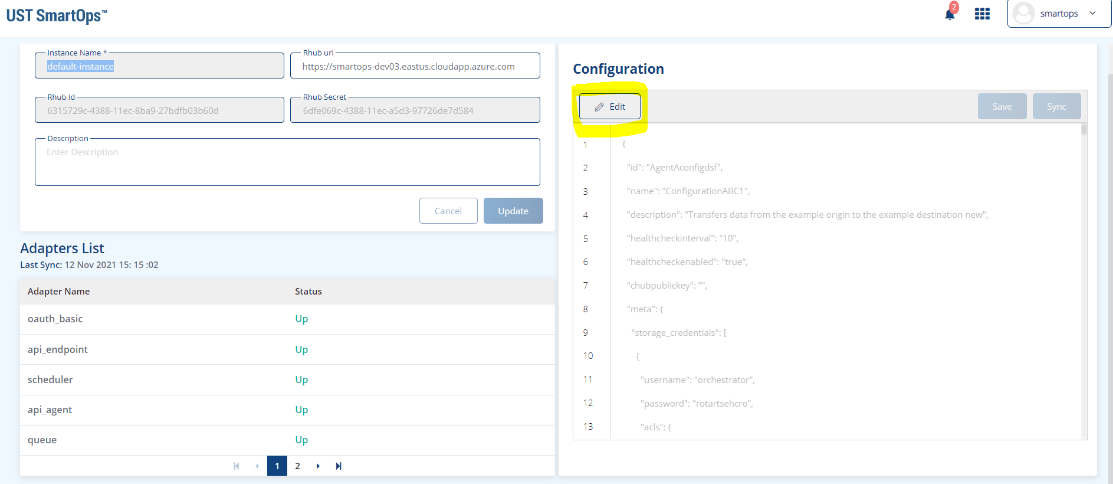

  • Click Edit button available in the configuration area



  • Add the flow file mentioned in the above step and click the Save and Sync button.

Create User data store (UDS) objects in the environment

• The notification framework requires user preference to select the channel for sending notification. The user preferences are stored in the user data store system. A valid Offline token should be present in the secret key vault to establish the communication.

• To create the user preference the user should call the UDS apis in the following order.

  • Create User API

  • Register application API. The application registered using this API will be consuming the notification API. For example, if rule-engine wants to sent a notification, then the rule engine should be registered as an application in the user data store.

  • Create user preference API (App Data API)

  • Refer the swagger documentation for user data store APIs

• Create/Update the user preference for configuring the email channel

  • Create user preference API (App Data API)

  • Refer the swagger documentation for user data store APIs https://<<>>/user-data-store/swagger#/

  • Sample payload


    }  {    "customData": {      "document-extracted": {        "channels": [          {            "email": [              "ihubdemo@gmail.com"            ]          }        ]      }    }



Appendix

File structure and details of RHub Configuration

Rhub configuration is the json file which keeps the settings of RHub and adapters. It stores the declaration of adapters, flow configuration.

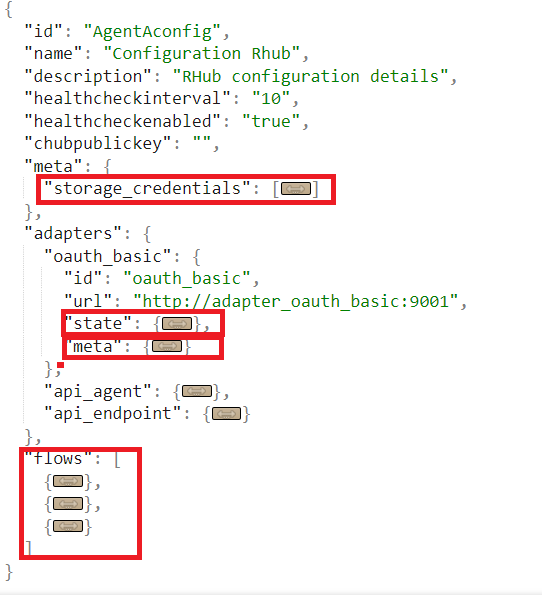

• Following is the basic structure of RHub configuration





• meta\storage_credentials: This element is storing the ACL configuration details of connecting from rhub orchestrator or respective adapter to the zookeeper. The username and password given here should same as the username and password set in the environment variables of respective dockers containers.


  "meta": { "storage_credentials": [ { "username": "orchestrator", "password": "rotartsehcro", "acls": { "read": true, "write": true } } ] }



• adapters\<<adapter_name>>\state: This section storing the adapter specific information. For example, the oauth_basic has to store the username and password for authentication. The state element will have any information that is used in the adapter.


  { "state": { "credentials": { "password_encryption": "sha512", "users": [ { "username": "jay2", "password": "sha512 hashed key of password", "roles": [ "admin", "cms_processor" ] } ] } } }



• flows: This element is storing the flows and its steps.

Sample queue configuration

{    "queue2": {      "queue_host": "amqp://username:password@<<env>>-rabbitmq:5672/notification",      "queue_type": "rabbit",      "queue_name": "email",      "flow": "send mail flow",      "flow_url": "https://<<hostname>>/orchestrator/rhub/execute/send_mail_flow",      "payload": {        "executionId": "email",        "correlationId": "email",        "input_array": [          {            "message": "$input.body.message",            "to": "$input.body.meta",            "subject": "$input.body.subject"          }        ]      },      "sensitivePayload": {        "api_token": "jwt generated by notification framework",        "token": "Basic amF5OmhlbGwwd29ybGQ="      },      "attachments": {}    }  }

send_email adapter configuration

"send_mail": {      "id": "send_mail",      "url": "http://smartopsv1-<<env>>-rhub-adapters-send-mail-rest:9001",      "state": {        "is_trigger": false,        "email_config": {       "API-Key": "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",          "sender": "smartopsnotifications@gmail.com"        }      },      "meta": {        "storage_credentials": [          {            "username": "send_mail",            "password": "liamdnes",            "acls": {              "read": true            }          }        ]      }    }



Sample flow for send email

{    "id": "send_mail_flow",    "required-role": [      "admin",      "cms_processor"    ],    "auth": {      "adapterId": "oauth_basic",      "source": "oauthadapter",      "sensitivepayload": {        "token": "$input.body.sensitivepayload.token"      }    },    "variables": {      "API-KEY": "https://covid-19-data.p.rapidapi.com/totals",      "key2": {        "dateparam": "20/02/20201",        "subkey2": "value"      }    },    "steps": [      {        "id": "step_1",        "type": "SYNC",        "adapterId": "send_mail",        "name": "invoke sync1",        "description": "",        "payload": {          "response": {            "data": "json"          },          "headers": {},          "input_array": "$input.body.payload.input_array"        },        "sensitivepayload": {},        "executionId": "$input.body.payload.executionId",        "correlationId": "$input.body.payload.correlationId",        "attachments": []      }    ],    "type": "SYNC",    "responsepayload": {      "correlationId": "$step.step_1.correlationId",      "mailresponse": "$step.step_1.payload.response.data"    },    "responseStatus": {}  }

Please don’t make any change in the username & password of any adapters, rhub components. This is one of the item we are planning in the upcoming releases.

Swagger URLs for APIs

• notification-consumer-api (To send a notification. This shall be consumed by the application who is sending a notification.) - https://smartops-qa01.eastus.cloudapp.azure.com/notification-consumer-api/docs#

• notification-inapp-api (To read, delete, update a notification from the UI and create (post) notification send by the downstream application into the InApp notification collection - https://smartops-dev03.eastus.cloudapp.azure.com/notification-inapp-api/docs

• User data store (UDS) - https://smartops-dev03.eastus.cloudapp.azure.com/user-data-store/swagger#/
